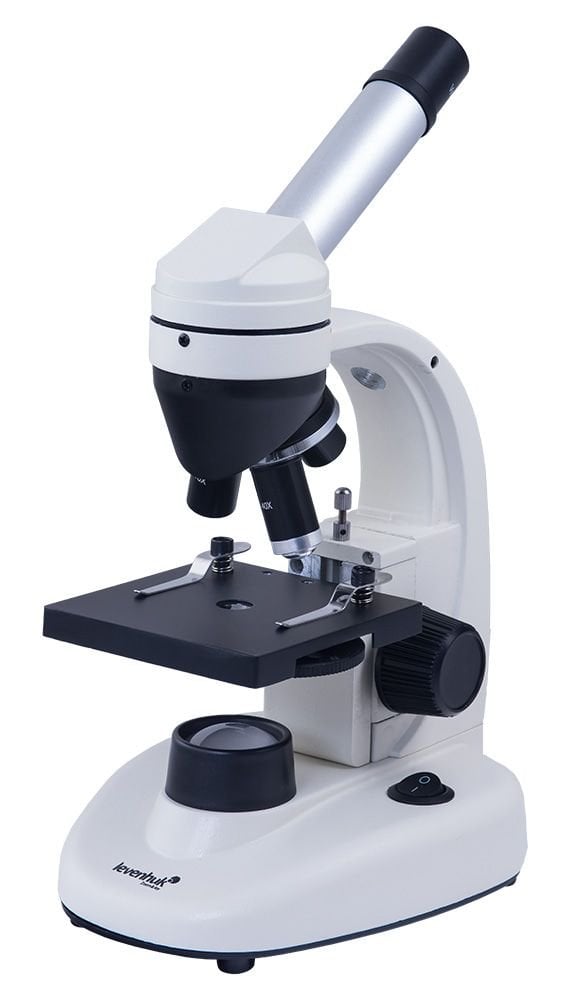

The Levenhuk 40L NG teaching biological microscope.
This excellent biological microscope is ideal for use in schools or colleges as well as for your own research of the microworld.
- Superb production quality: case and elements are all-metal, not plastic.
- Focusing mechanism and stage move smoothly, without jerks or backlash.
- Rotatable head can be fixed in any position, which makes observation much more convenient.
- Eyepieces, objectives and all other optical elements are multi-coated and highly transparent.
All this provides extremely high image quality and long microscope life without any special maintenance.
Magnification
Magnification depends on the objectives (located below) and eyepieces (located above) being used.
The set includes two eyepieces and three objectives as well as Barlow
lens, which allows to smoothly change the magnification ratio.
- Eyepieces: WF10x, WF16x
- Objectives: 4x, 10x and 40x
- Barlow lens: 2x
Minimum magnification: Eyepiece 10x * Objective 4x = 40x
Maximum magnification: Eyepiece 16x * Objective 40x = 640x, and with Barlow lens magnification smoothly reaches 640*2.0 = 1280x!
Illumination
This microscope is distinguished by an important feature - two
illumination systems with adjustable brightness. Built-in illumination
is LED, which ensures minimal energy consumption yet still providing
sufficient light.
Illumination systems are located above and below the stage, and allow observing both transparent and opaque objects: from tiny solid particles to coins, paper, fabrics, etc. (It would be fascinating to observe a mobile phone screen - actually, each pixel consists of three segments, red, green and blue.)
Power supply
The microscope features an AC adapter, for stationary observations without batteries.
Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries.

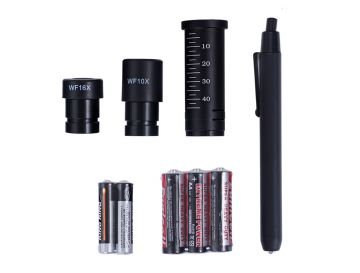

The kit includes:
- Microscope
- Objectives: 4x, 10x and 40x
- Two eyepieces: WF10x, WF16x
- 2x Barlow lens
- Stage with clips
- Disc diaphragm
- Built-in lower LED illumination
- Retractable upper halogen illumination
- AC adapter
- 3 AA and 2 AAA batteries

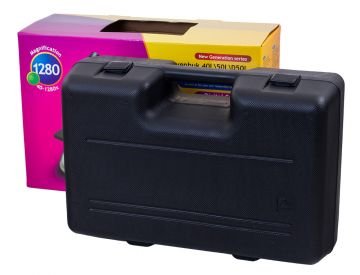

- Plastic case
- User manual and lifetime warrant
